厚普新产品丨大流量加卸氢质量流量计

大流量加卸氢质量流量计

氢气是世界上最轻的介质，密度极低、易泄漏、易渗透。高压大流量工况下的精准计量与密封是行业公认的难题。氢气质量流量计作为加氢站贸易结算的那杆“秤”——秤不准，每一公斤误差都是利润流失。而这一核心部件长期依赖进口，供应链不稳、服务滞后，风险如影随形。

厚普旗下安迪生全新推出的大流量加氢/卸氢质量流量计，不仅攻克了大流量下的精准计量难题，更以100%国产化硬实力，让加氢站告别“卡脖子”焦虑，实现降本增效、自主可控。

Hydrogen is the lightest medium in the world—extremely low in density, highly prone to leakage and permeation. Accurate measurement and reliable sealing under high-pressure, high-flow conditions are industry-recognized challenges. The hydrogen mass flowmeter serves as the "scale" for trade settlement at hydrogen refueling stations—if the scale is inaccurate, every kilogram of error translates into lost profit. Yet this critical component has long relied on imports, exposing stations to supply chain instability, sluggish service response, and ever-present risks.

Andison, a subsidiary of Houpu Group, has newly launched a high-flow hydrogen refueling/unloading mass flowmeter. It not only overcomes the challenge of precise measurement at high flow rates but also, with 100% domestically sourced components, frees hydrogen refueling stations from the anxiety of "bottleneck" technologies—delivering true cost reduction, operational efficiency, and independent control.

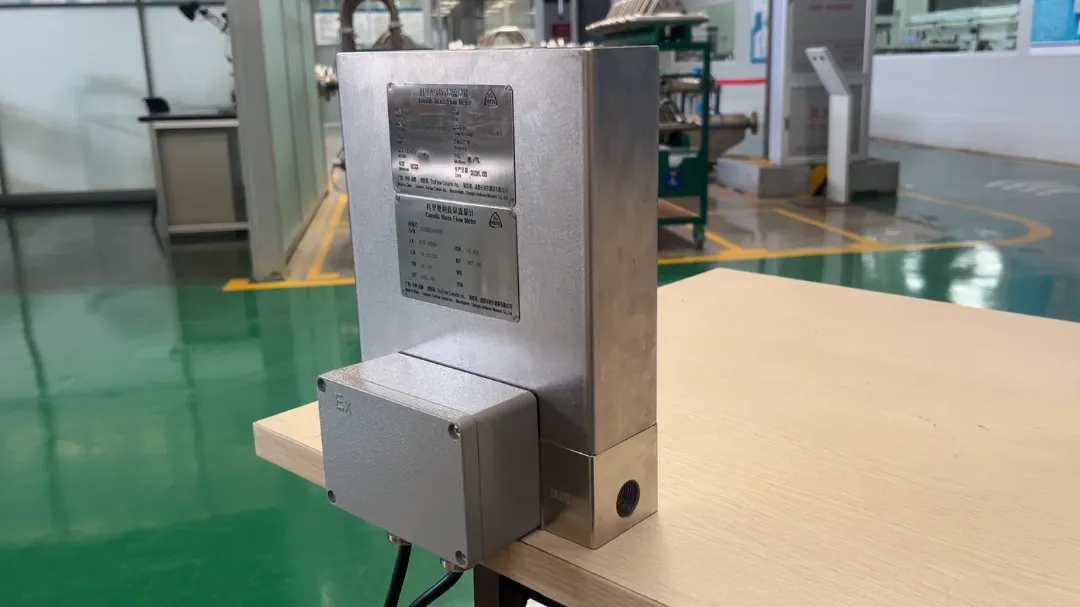

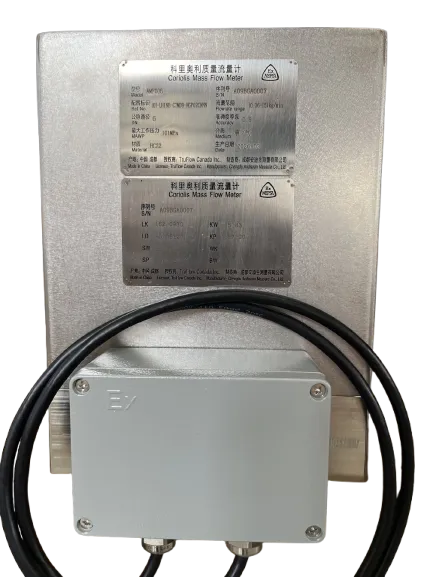

大流量加氢质量流量计

>> High-flow hydrogenation Mass Flowmeter<<

主要指标参数

Technical Parameters

1、最大流量：18kg/min

Maximum flow

2、准确度等级：0.15级

Accuracy class

3、最大工作压力：101MPa

Maximum working pressure

性能特点Features

安装接口与外形尺寸媲美进口品牌

Mounting interface and overall dimensions are consistent with imported brands.

哈氏合金适用于强腐蚀性介质

Hastelloy is suitable for highly corrosive media.

器件国产化100%

100% domestically sourced components.

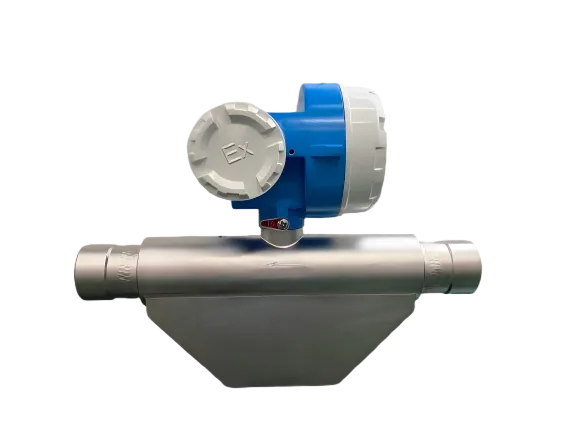

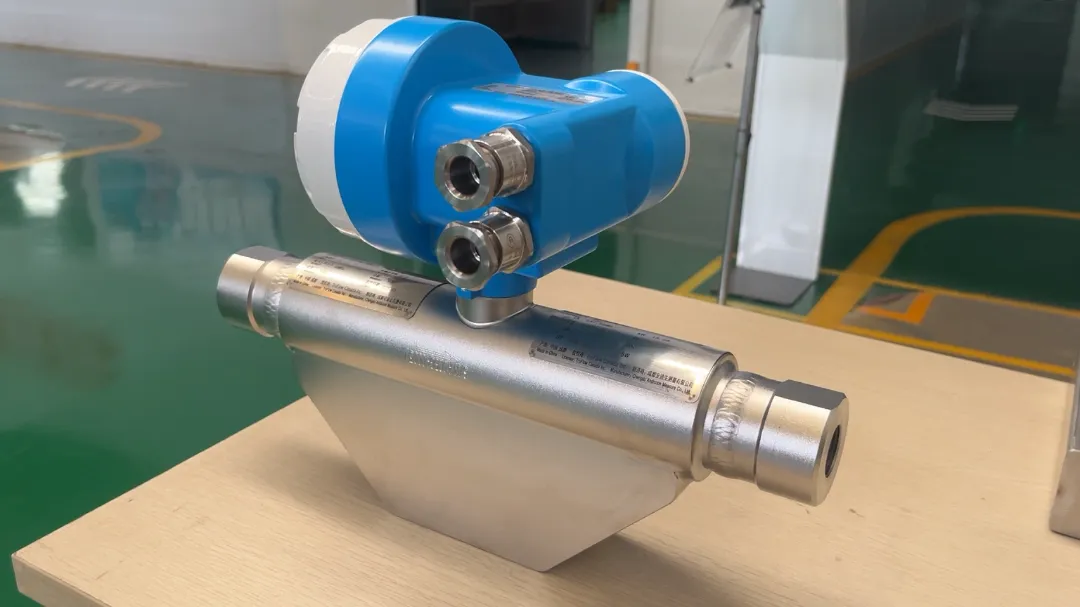

大流量卸氢质量流量计

>>High-flow hydrogen unloading Mass Flowmeter<<

主要指标参数

Technical Parameters

1、最大流量：18kg/min

Maximum flow

2、准确度等级：0.15级

Accuracy class

3、最大工作压力：43MPa

Maximum working pressure

性能特点Features

安装接口媲美进口品牌

Same mounting interface as imported brands.

接液材质：316L

Wetted parts material.

器件国产化100%

100% domestically sourced components.

工艺亮点

Process Highlights

1、特殊结构工艺

保证氢气密封以及高压工况

Special Structural Technology,Brazing + argon arc welding ensures hydrogen sealing and high-pressure performance.

2、氢气专用密封结构

保证高压密封稳定可靠

Hydrogen-Specific Sealing Structure,Tapered hard seal ensures stable and reliable high-pressure sealing.

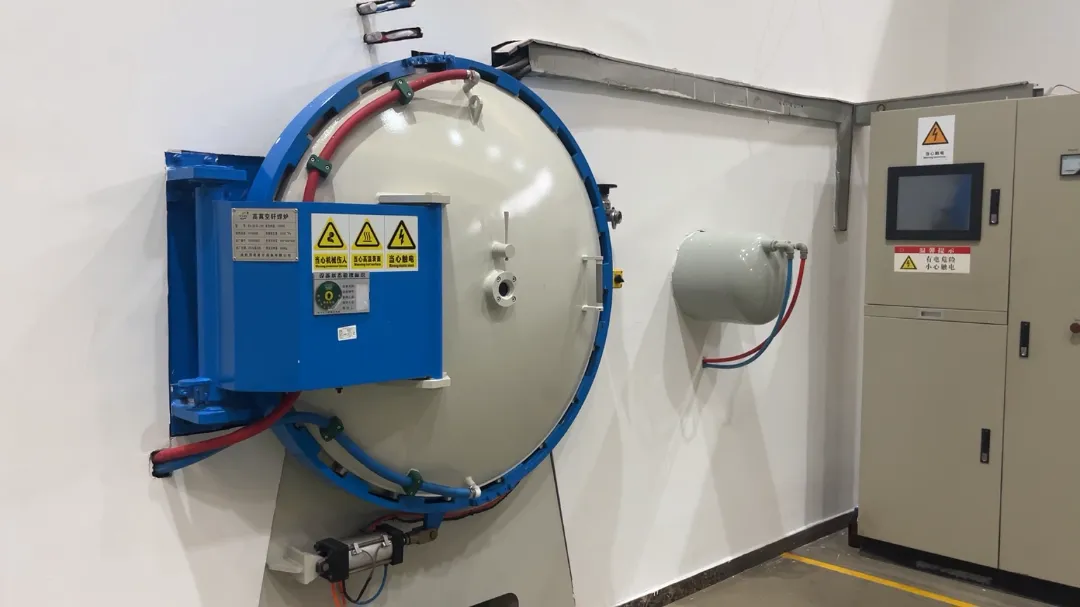

（真空钎焊炉）

应用领域

Applications

>> 加氢机/卸氢柱

Hydrogen dispenser/hydrogen offloading column

>>定量装车橇

Quantitative loading skid
